Explomet2 series

Explomet2 series

Entry level

  • User friendly
  • Polyurethane resin case
  • PMMA cover
  • Quartz: Calibration made by Kontinitro
  • Display 4.3 inch
  • Keypad entry

Middle level

  • User friendly
  • Polyurethane resin case
  • Aluminum cover
  • Quartz: Calibration made by Kontinitro
  • Touchscreen 5.0 inch

Simply the best

  • User friendly
  • Heavy duty ionized aluminum case
  • Aluminum 3 [mm] cover
  • Quartz: High precision , temperature corrected, no calibration needed
  • Touchscreen 5.0 inch

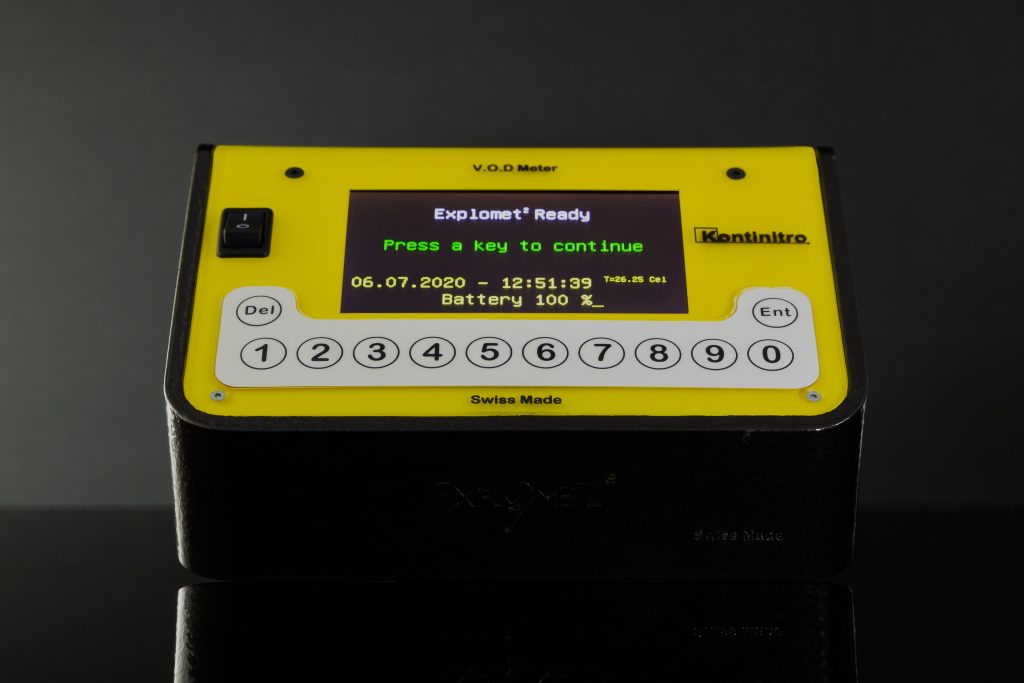

The Explomet² is a detonation speedometer (VOD) for explosives and fuel. The latest generation of Kontinitro SA measuring instruments released in 2019 is easier to use, faster and more modern than its predecessor, the Explomet-fo-2000, but is nevertheless based on the same technology.

The light signal emitted during the explosion is transmitted from the explosive to the instrument by optical fibers. The light signal is converted into data by the Explomet² and gives the V.O.D of the explosive.

The order of the optical fibers on the explosive can be completely random. Explomet² automatically decodes the lighting order of optical fibers and recovers VOD data.

The accuracy of the Explomet² is +/- 0.01 microseconds (0.00000001 seconds).

Our measuring instrument can calculate with extreme precision detonation velocities that can exceed 15’000 m/s.

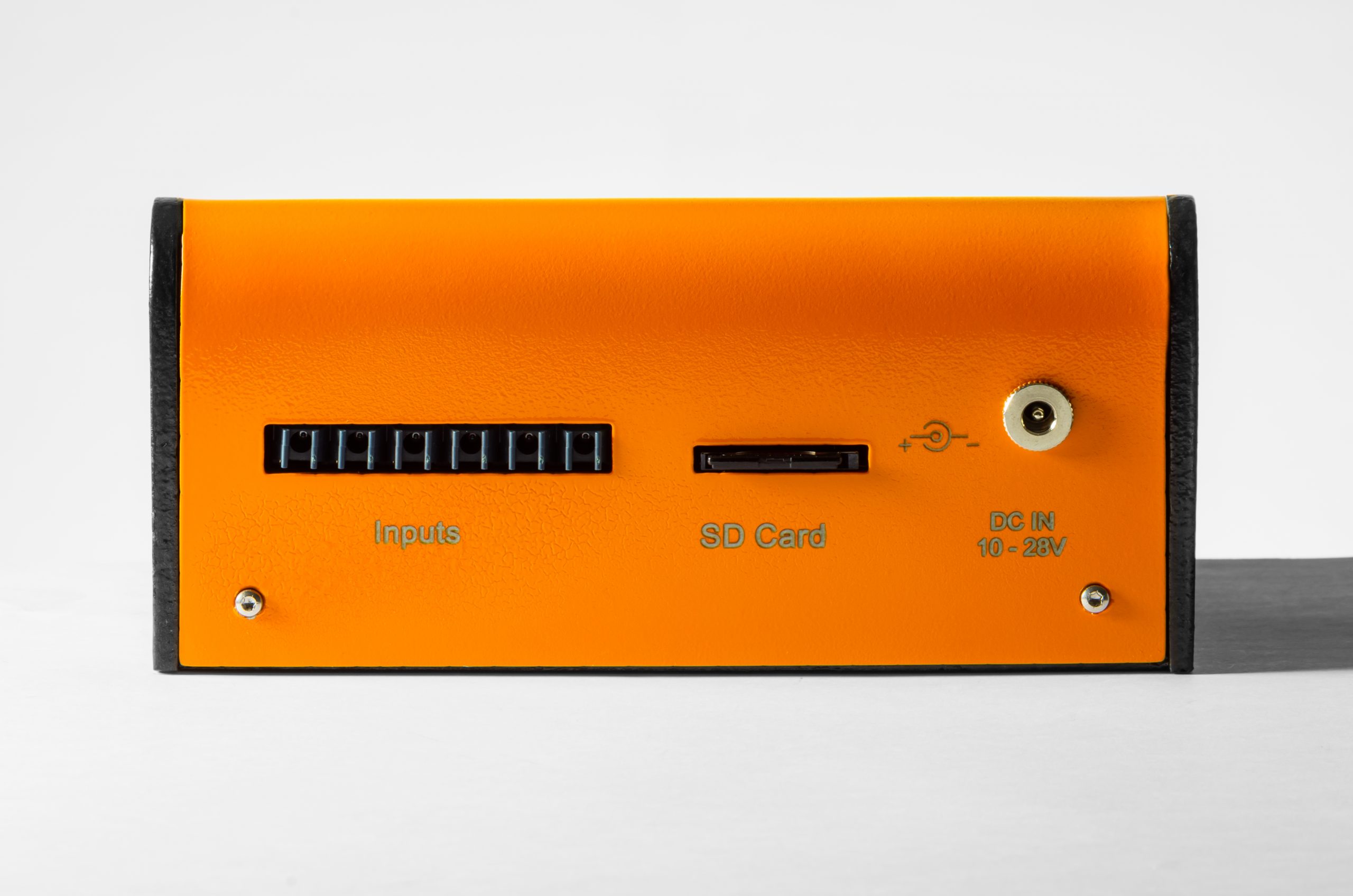

The Explomet² is designed as a black box, all the data (date, time, length, speed) entered and collected by the device are systematically saved on an SD card.

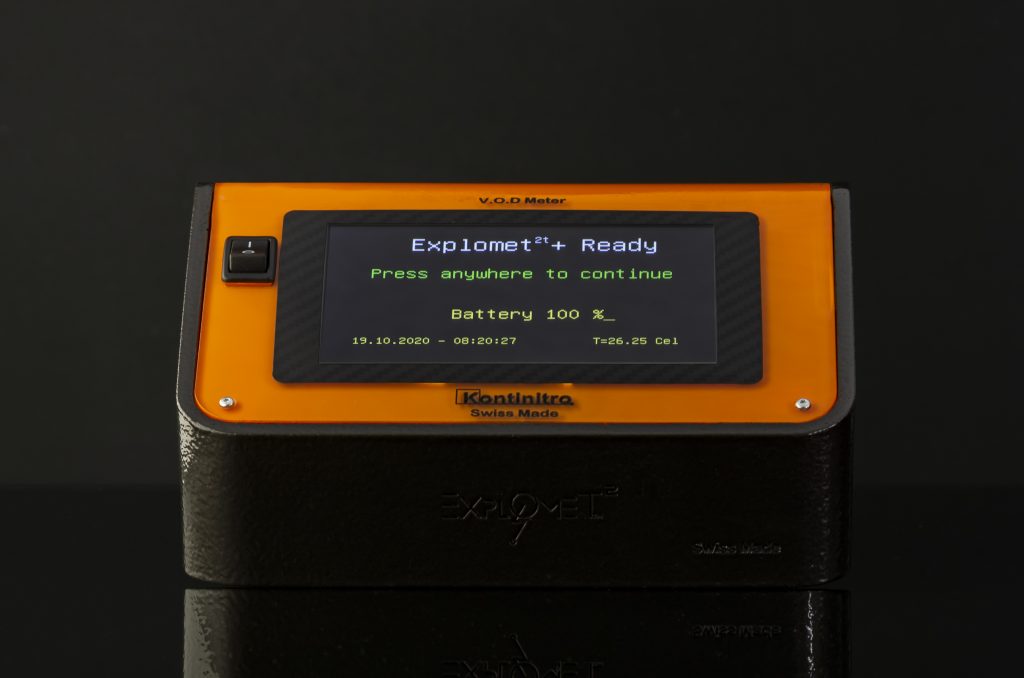

The Explomet ²ᵀ, Velocity Of Detonation meter for explosives and fuel, is the latest measuring instrument from Kontinitro SA in 2019. Easier to use, faster and more modern than its predecessor, the Explomet-fo-2000, it is based on the same technology. The light signal emitted during the explosion is transmitted from the explosive to the instrument by optical fibers. The light signal is converted into data by the Explomet²ᵀ and gives the V.O.D of the explosive.

The placement of the optical fibers on the explosive can be completely random. The Explomet²ᵀ automatically unscramble the optical fiber illumination order and restores the VOD data.

The accuracy of the Explomet²ᵀ is +/- 0.01 microseconds (0.00000001 seconds).

Our measuring instrument can calculate with extreme precision detonation velocities that can exceed 15’000 m/s.

The Explomet²ᵀ is designed as a black box, all the data (date, time, length, speed) entered and collected by the device are systematically saved on an SD card.

The Explomet²ᵀ has a resistive touch screen is designed for harsh environments and frequent use. It is robust and can be used without or with gloves. Developed for VOD tests in the field, in quarries or in mines, it is the ideal choice for measurements with the EasyProbe System or DCS (Duplex Cable System).

The Explomet²ᵀ⁺, Velocity Of Detonation meter for explosives and fuel, is the latest measuring instrument from Kontinitro SA in 2019. Easier to use, faster and more modern than predecessor, the Explomet-fo-2000, it is based on the same technology. The light signal emitted during the explosion is transmitted from the explosive to the instrument by optical fibers. The light signal is converted into data by the Explomet²ᵀ⁺ and gives the V.O.D of the explosive.

The placement of the optical fibers on the explosive can be completely random. The Explomet²ᵀ⁺ automatically unscramble the optical fiber illumination order and restores the VOD data.

The accuracy of the Explomet²ᵀ⁺ is +/- 0.01 microseconds (0.00000001 seconds).

Our measuring instrument can calculate with extreme precision detonation velocities that can exceed 15’000 m/s.

The Explomet²ᵀ⁺ is designed as a black box, all the data (date, time, length, speed) entered and collected by the device are systematically saved on an SD card.

The Explomet²ᵀ⁺ has a resistive touch screen is designed for harsh environments and frequent use. It is robust and can be used without or with gloves. Developed for VOD tests in the field, in quarries or in mines, it is the ideal choice for measurements with the EasyProbe System or DCS (Duplex Cable System).

The Explomet²ᵀ⁺ is simply the best measuring instrument manufactured by Kontinitro since 1987. The Explomet 2T + is the first VOD measuring instrument with a self-calibrating quartz independently of the outside conditions. Designed to withstand temperatures between -40 and 80 degrees Celcius (-40 and 176 degrees Farenheit), it can withstand the worst conditions, such as rain, mud, sand, dust and snow. Its ionized aluminum case gives it great strength and makes this measuring instrument almost indestructible.
